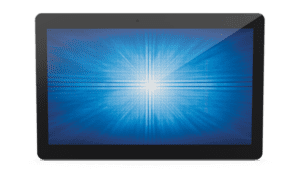

15” I-Series for Android

Manufacturer:

Model Number: 15” I-Series for Android

Type: 15”

The I-Series 2.0 for Android is one of the most versatile product lines on the market. Available in white and black, the AiO solution offers a variety of mounting options and delivers flexibility for the rigors of continuous public use for in-store interaction, point of sale, self-service, price-checker, wayfinding, corporate and hospitality environments.

Spec Sheet
Request a Quote

15” I-Series for Android Features

Part Number(s):

  • Standard Models:
    • PCAP Black (Worldwide) – E611296
    • PCAP White (Worldwide – MTO) – E614592
  • Value Models:
    • PCAP Black (Worldwide) – E611480
    • PCAP White (Worldwide – MTO) – E614786

Accessories:

  • Wallaby™ Self-Service Stands
    • Wallaby Self-Service Countertop Stand – E796783
    • Wallaby Self-Service Floor Stand – E796965 + E797162
  • Pole Stands
    • 6” (152.4 mm) Pole Mount Bolt Down Kit – E047458
    • 12” (304.8 mm) Pole Mount Bolt Down Kit – E047663
    • 18” (457.2 mm) Pole Mount Bolt Down Kit – E047864
    • Pole Mount Floor Stand – E048069
    • Pole Mount Tabletop Stand – E160104
    • Rear-facing Display Pole Mount Kit – E038989
  • EMV Cradles
    • EMV Cradle for Ingenico ICMP (I-Series & 02-Series Monitors) – E200465
    • EMV Cradle for Ingenico ICMP (X-Series & IDS 02-Series) – E200788
    • EMV Cradle for Ingenico ICMP (PayPoint) – E953516
    • EMV Cradle for Verifone E355 (I-Series & 02-Series Monitors) – E201088
    • EMV Cradle for Verifone E355 (X-Series & IDS 02-Series) – E201363
    • EMV Cradle for Verifone E355 (PayPoint) – E002639
    • EMV Cradle for MagTek eDynamo (I-Series AiO, EloPOS™, X-Series AiO, 02-Series Monitors, IDS 02-Series) – E375343
    • EMV Cradle for Ingenico RP457c with Audio Jack, BT and USB (I-Series AiO, EloPOS, X-Series AiO, 02-Series Monitors, IDS 02-Series) – E586981
    • EMV Cradle for Ingenico RP457c with BT and USB (I-Series AiO, EloPOS, X-Series AiO, 02-Series Monitors, IDS 02-Series) – E710930
  • For Wallaby Stands Only:
    • EMV Cradle for Verifone MX915 & Ingenico iSC250 (15” & 22” I-Series AiO) – E798125
    • EMV Cradle for Ingenico iPP320/350/315 (15” & 22” I-Series AiO) – E699053
    • EMV Cradle for Ingenico RP757 (15” & 22” I-Series AiO) – E920661
  • Status Light
    • Micro USB Connectivity – E466847
    • GPIO Connectivity – E651272
  • Tabletop Stand
    • Tabletop Stand for 15” I-Series – Elo P/N: E044162
    • Tabletop Stand for 22” I-Series – Elo P/N: E044356
  • Wallaby™ POS Stand (Discontinued November 2019)
    • For I-Series, 1002L & 1502L – E353950 – Black
    • For X-Series 15, 17 & 20 – E847771 – Black; E185084 – White
  • Expansion Module for Android
    • Long Cable Kit – Mounted under the flip stand – E923781
    • Short Cable Kit – Mounted on the back of the I-Series – E412240
  • Barcode Reader
    • 1D Barcode Reader for M-Series, I-Series, 02-Series – E093433
    • 1D Barcode Reader for X-Series – E267080
    • 2D Barcode Scanner – E926356
  • Other Accessories
    • Magnetic Stripe Reader (MSR) – E001002
    • NFC/RFID – E001004
    • Shelf Mount – E043382
    • Power-over-Ethernet (POE) Module – E615169
    • Flip Stand – E924077
    • X-Series Stand – E154446

View the full extent of our products

Download our free product catalog today!

Download Now

Detailed Specifications

  • Enclosure Color

    White or Black

  • Touch Technology & Capacity

    PCAP (TouchPro® Projected Capacitive) – 10 Touch

  • Processor

    Qualcomm® Snapdragon™ APQ8053 2.0GHz Octa-Core Processor

  • Memory (RAM)


    Standard Models: 3GB DDR3L
    Value Models: 2GB DDR3L

  • Storage


    Standard Models: 32GB SSD
    Value Models: 16GB SSD

  • OS

    Android 7.1 with EloView content deployment and management

  • Diagonal Size

    15.6” diagonal, Active matrix TFT LCD (LED)

  • Aspect Ratio

    16:9

  • Active Area (mm)

    13.55″ x 7.62″ / 344mm x 194mm

  • Resolution

    Full HD 1920 x 1080 @ 60Hz

  • Number of Colors

    6-bit (262,000)

  • Brightness (typical)


    Standard Models:
    LCD Panel: 300 nits
    PCAP: 258 nits
    Value Models:
    LCD Panel: 220 nits
    PCAP: 189 nits

  • Response Time-total (typical)


    Standard Models: 30 msec
    Value Models: 12 msec

  • Contrast Ratio


    Standard Models: 800:1
    Value Models: 500:1

  • Viewing Angle


    Standard Models: Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total
    Value Models: Horizontal: ± 45° / Vertical: 20° and 40°

  • I/O Ports


    Standard Models:
    Micro HDMI output
    Micro SD slot
    Ethernet 1x LAN (Gigabit)
    GPIO
    1x USB 3.0 support, 4x microUSB
    Value Models:
    Ethernet 1x LAN (Gigabit)
    1x USB 3.0 support
    Micro SD slot
    GPIO

  • Peripheral Mounting


    Standard Models: 4x microUSB side ports available
    Value Models: Peripheral mounting is not available

  • Webcam


    Standard Models Only:
    Auto exposure
    Auto Gain Control
    Sharpness/Brightness/Contrast control
    Max resolution: 1920 x 1080 30fps

  • Wireless

    802.11b/g/n/ac + Bluetooth 4.1

  • Audio Ports


    Standard Models Only: Built-in microphone
    Microphone and headphone support is available via an optional USB adaptor (Vantech NBA-120U)

  • Speakers

    Two 2W internal speakers

  • Power Supply


    AC input voltage: 100-240 VAC
    Input frequency: 50-60 Hz

  • Power Consumption (Typical)


    ON: 13W
    OFF: 0.4W
    SLEEP: 4.5W

  • Dimensions

    15.23″ x 9.77″ x 1.11″ / 386.74mm x 248.17mm x 28.3mm

  • Shipping Box Dimensions

    18.50″ x 11.81″ x 5.9″ / 470mm x 300mm x 150mm

  • Weight (Unpackaged)

    3.5 lbs / 1.59kg

  • Weight (Packaged)

    7.20 lbs / 3.27 kg

  • Operating Temperature

    0°C to 40°C / 32°F to 104°F

  • Storage Temperature

    -20°C to 50°C / -4°F to 122°F

  • Humidity


    Operating: 20% to 80%
    Storage: 5% to 95%

  • Regulatory approvals and declarations


    UL/cUL, FCC (US)
    IC (Canada)
    CE (Europe)
    CB (International)
    CCC, SRRC, China RoHS (China), VCCI, MIC (Japan)
    RCM (Australia)
    KCC (Korea)
    NOM (Mexico)
    BIS (India)
    ANATEL (Brazil)
    BSMI (Taiwan)
    EAC (Russia)

  • Real-Time Clock

    Lithium coin cell battery

  • MTBF

    50,000 hours demonstrated

  • Mounting Options


    VESA 75mm x 75mm
    VESA 100mm x 100mm

  • Sealability

    Touchscreen sealed to LCD

  • Power Cables


    North American
    European

  • What’s in the Box


    I-Series 2.0 AiO
    North American Power Cable
    European Power Cable
    1x Power Brick
    Quick Install Guide
    Screws for cable cover door (located in the power/Ethernet bay)

  • Optional Peripherals


    Magnetic Stripe Reader (MSR) – Elo P/N: E001002
    NFC/RFID Reader – Elo P/N: E001004
    Barcode Reader (BCR) – Elo P/N: E093433
    GPIO Cable – Elo P/N: E211544
    2D Barcode Scanner – Elo P/N: E926356
    EMV Cradle for Ingenico ICMP (I-Series & 02-Series Monitors) – Elo P/N: E200465
    EMV Cradle for Verifone E355 (I-Series & 02-Series Monitors) – Elo P/N: E201088
    POE Module Kit – Elo P/N: E615169
    EMV Cradle for MagTek eDynamo – Elo P/N: E375343
    EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) – Elo P/N: E586981
    EMV Cradle for Ingenico RP457c (with BT and USB) – Elo P/N: E710930
    Status Light (Micro-USB Connectivity) – Elo P/N: E466847
    Status Light (GPIO Connectivity) – Elo P/N: E651272

  • Stands, Mounts & Kits


    Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088
    Wall Mount Kit (low profile) – Elo P/N: E802400 (Not compatible with POE installed)
    Tabletop Stand for 15” I-Series – Elo P/N: E044162
    Tabletop Flip Stand for 10” & 15” I-Series – Elo P/N: E924077
    Tabletop X-Series Stand – Elo P/N: E154446
    Shelf Mount Bracket (75mm or 100mm VESA) – Elo P/N: E043382
    Floor Stand (75mm or 100mm VESA) – Elo P/N: E048069
    Pole Mount – 6 inch (75mm or 100mm VESA) – Elo P/N: E047458
    Pole Mount – 12 inch (75mm or 100mm VESA) – Elo P/N: E047663
    Pole Mount – 18 inch (75mm or 100mm VESA) – Elo P/N: E047864
    Pole Mount Bracket (75mm or 100mm VESA) – Elo P/N: E045151
    Expansion Module – Short Cable Kit – Mounted on the back of the I-Series – Elo P/N: E412240
    Expansion Module – Long Cable Kit – Mounted under the flip stand – Elo P/N: E923781
    Wallaby™ POS Stand (Black) – Elo P/N: E949536
    Wallaby™ POS Stand (White) – Elo P/N: E353758
    Wallaby™ Self-Service Countertop Stand (75mm or 100mm VESA) – Elo P/N: E796783
    Wallaby™ Self-Service Floor Stand (75mm or 100mm VESA) – Elo P/N: E796965 + E797162
    Replacement Cable Kit (NA & EU power cables and power brick) – Elo P/N: E514304
    Slim Self-Service Countertop Stand (75mm or 100mm VESA) – Elo P/N: E514693
    Slim Self-Service Floor Stand (75mm or 100mm VESA) – Elo P/N: E514881 + E515260
