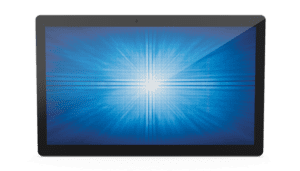

22” I-Series for Android

Manufacturer:

Model Number: 22” I-Series for Android

Type: 22”

The I-Series 2.0 for Android is one of the most versatile product lines on the market. Available in white and black, the AiO solution offers a variety of mounting options and delivers flexibility for the rigors of continuous public use for in-store interaction, point of sale, self-service, price-checker, wayfinding, corporate and hospitality environments.

Spec Sheet
Request a Quote

22” I-Series for Android Features

Part Number(s):

  • PCAP Black (Worldwide) – E611675
  • PCAP White (Worldwide – MTO) – E614981

Accessories:

  • Magnetic Stripe Reader (MSR) – Elo P/N: E001002
  • NFC/RFID Reader – Elo P/N: E001004
  • Barcode Reader (BCR) – Elo P/N: E093433
  • GPIO Cable – Elo P/N: E211544
  • 2D Barcode Scanner – Elo P/N: E926356
  • EMV Cradle for Ingenico ICMP (I-Series & 02-Series Monitors) – Elo P/N: E200465
  • EMV Cradle for Verifone E355 (I-Series & 02-Series Monitors) – Elo P/N: E201088
  • POE Module Kit – Elo P/N: E615169
  • EMV Cradle for MagTek eDynamo – Elo P/N: E375343
  • EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) – Elo P/N: E586981
  • EMV Cradle for Ingenico RP457c (with BT and USB) – Elo P/N: E710930
  • Status Light (Micro-USB Connectivity) – Elo P/N: E466847
  • Status Light (GPIO Connectivity) – Elo P/N: E651272

View the full extent of our products

Download our free product catalog today!

Download Now

Detailed Specifications

  • Enclosure Color

    White or Black

  • Touch Technology & Capacity

    PCAP (TouchPro® Projected Capacitive) – 10 Touch

  • Processor

    Qualcomm® Snapdragon™ APQ8053 2.0GHz Octa-Core Processor

  • Memory (RAM)

    3GB DDR3L

  • Storage

    32GB SSD

  • OS

    Android 7.1 with EloView content deployment and management

  • Diagonal Size

    21.5” diagonal, Active matrix TFT LCD (LED)

  • Aspect Ratio

    16:9

  • Active Area (mm)

    18.74″ x 10.54″ / 476mm x 268mm

  • Resolution

    Full HD 1920 x 1080 @ 60Hz

  • Number of Colors

    16.7 million

  • Brightness (typical)

    LCD Panel: 250 nits
    TouchPro PCAP: 215 nits

  • Response Time-total (typical)

    14 msec

  • Contrast Ratio

    1000:1

  • Viewing Angle

    Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total

  • I/O Ports

    Micro HDMI output
    Micro SD slot
    Ethernet 1x LAN (Gigabit)
    GPIO
    1x USB 3.0 support

  • Peripheral Mounting

    4x microUSB side ports available

  • Webcam

    Auto exposure
    Auto Gain Control
    Sharpness/Brightness/Contrast control
    Max resolution: 1920 x 1080 30fps

  • Wireless

    802.11b/g/n/ac + Bluetooth 4.1

  • Audio Ports

    Built-in microphone
    Microphone and headphone support via optional USB adaptor

  • Speakers

    Two 2W internal speakers

  • Power Supply

    AC input voltage: 100-240 VAC
    Input frequency: 50-60 Hz
    Power adapter included (E514304)

  • Power Consumption (Typical)

    ON: 16W
    OFF: 0.5W
    SLEEP: 4.0W

  • Dimensions

    12.75″ x 20.63″ x 1.39″ / 323.9mm x 523.9mm x 35.2mm

  • Shipping Box Dimensions

    23.62″ x 15.75″ x 7.08″ / 600mm x 400mm x 180mm

  • Weight (Unpackaged)

    9.47 lbs / 4.30kg

  • Weight (Packaged)

    16.10 lbs / 7.30 kg

  • Operating Temperature

    0°C to 40°C / 32°F to 104°F

  • Storage Temperature

    -20°C to 50°C / -4°F to 122°F

  • Humidity

    Operating: 20% to 80%
    Storage: 5% to 95%

  • Regulatory approvals and declarations

    UL/cUL, FCC (US), IC (Canada), CE (Europe), CB (International), CCC, SRRC, China RoHS (China), VCCI, MIC (Japan), RCM (Australia), KCC (Korea), NOM (Mexico), BIS (India), ANATEL (Brazil), BSMI (Taiwan), EAC (Russia)

  • Real-Time Clock

    Lithium coin cell battery

  • MTBF

    50,000 hours demonstrated

  • Mounting Options

    VESA 100mm x 100mm

  • Sealability

    Touchscreen sealed to LCD

  • What’s in the Box

    I-Series 2.0 AiO
    North American Power Cable
    European Power Cable
    1x Power Brick
    Quick Install Guide
    Screws for cable cover door

  • Optional Peripherals

    Magnetic Stripe Reader (MSR) – Elo P/N: E001002
    NFC/RFID Reader – Elo P/N: E001004
    Barcode Reader (BCR) – Elo P/N: E093433
    GPIO Cable – Elo P/N: E211544
    2D Barcode Scanner – Elo P/N: E926356
    EMV Cradle for Ingenico ICMP – Elo P/N: E200465
    …

  • Stands, Mounts & Kits


    Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088
    Wall Mount Kit (low profile) – Elo P/N: E802400 (Not compatible with POE installed)
    Tabletop Stand for 22” I-Series (100mm VESA) – Elo P/N: E044356
    Shelf Mount Bracket (75mm or 100mm VESA) – Elo P/N: E043382
    Floor Stand (75mm or 100mm VESA) – Elo P/N: E048069
    Pole Mount – 6 inch (75mm or 100mm VESA) – Elo P/N: E047458
    Pole Mount – 12 inch (75mm or 100mm VESA) – Elo P/N: E047663
    Pole Mount – 18 inch (75mm or 100mm VESA) – Elo P/N: E047864
    Pole Mount Bracket (75mm or 100mm VESA) – Elo P/N: E045151
    Expansion Module – Short Cable Kit – Mounted on the back of the I-Series – Elo P/N: E412240
    Expansion Module – Long Cable Kit – Mounted under the flip stand – Elo P/N: E923781
    Wallaby™ Self-Service Countertop Stand (75mm or 100mm VESA) – Elo P/N: E796783
    Wallaby™ Self-Service Floor Stand (75mm or 100mm VESA) – Elo P/N: E796965 + E797162
    Replacement Cable Kit (NA & EU power cables and power brick) – Elo P/N: E514304
    Slim Self-Service Countertop Stand (75mm or 100mm VESA) – Elo P/N: E514693
    Slim Self-Service Floor Stand (75mm or 100mm VESA) – Elo P/N: E514881 + E515260
