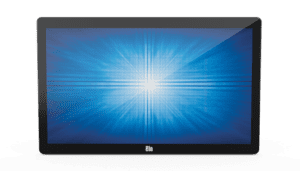

2202L 22” Touch Monitor

Manufacturer:

Model Number: 2202L

Type: Desktop

The Elo 02-Series of Touchscreen Monitors designed with seamless style across all sizes includes four options — a 19-inch square aspect ratio display and 22, 24 and 27-inch wide aspect ratio displays. With a compact form factor and clean design for easy integration, the 02-Series monitors are well-suited for point-of-sale, point of information, signage and hospitality applications. And with a variety of peripherals, the monitors can be transformed to meet the demands of your blueprint.

Spec Sheet
Request a Quote

2202L Features

Part Number(s):

  • With Stand – E351600
  • Without Stand – E126096

Accessories:

  • EMV Cradles
    • EMV Cradle for Ingenico ICMP (I-Series & 02-Series Monitors) – E200465
    • EMV Cradle for Ingenico ICMP (X-Series & IDS 02-Series) – E200788
    • EMV Cradle for Ingenico ICMP (PayPoint) – E953516
    • EMV Cradle for Verifone E355 (I-Series & 02-Series Monitors) – E201088
    • EMV Cradle for Verifone E355 (X-Series & IDS 02-Series) – E201363
    • EMV Cradle for Verifone E355 (PayPoint) – E002639
    • EMV Cradle for MagTek eDynamo (I-Series AiO, EloPOS™, X-Series AiO, 02-Series Monitors, IDS 02-Series) – E375343
    • EMV Cradle for Ingenico RP457c with Audio Jack, BT and USB (I-Series AiO, EloPOS, X-Series AiO, 02-Series Monitors, IDS 02-Series) – E586981
    • EMV Cradle for Ingenico RP457c with BT and USB (I-Series AiO, EloPOS, X-Series AiO, 02-Series Monitors, IDS 02-Series) – E710930
  • For Wallaby Stands Only
    • EMV Cradle for Verifone MX915 & Ingenico iSC250 (15” & 22” I-Series AiO) – E798125
    • EMV Cradle for Ingenico iPP320/350/315 (15” & 22” I-Series AiO) – E699053
    • EMV Cradle for Ingenico RP757 (15” & 22” I-Series AiO) – E920661
  • Other Accessories
    • Shelf Mount – E043382
    • Slim Self-Service Stands
      • Slim Self-Service Countertop Stand – E514693
      • Slim Self-Service Floor Stand – E514881 + E515260
    • Elo Backpack® with Android Open Source – E611864
    • VFD Customer Display – E001003
    • Pole Mount Bracket – E045151
    • 2D Barcode Scanner – E926356
    • NFC/RFID – E001004
    • Magnetic Stripe Reader (MSR) – E001002
    • 1D Barcode Reader – For M-Series, I-Series, 02-Series – E093433
    • 1D Barcode Reader – For X-Series – E267080

View the full extent of our products

Download our free product catalog today!

Download Now

Detailed Specifications

  • Enclosure Color

    Black

  • Touch Technology & Capacity

    PCAP (TouchPro® Projected Capacitive) – 10 Touch

  • Diagonal Size

    21.5” diagonal, Active matrix TFT LCD (LED)

  • Aspect Ratio

    16:9

  • Active Area (mm)

    18.74″ x 10.54″ / 467.06 mm x 267.78 mm

  • Resolution

    1920 x 1080 @ 50, 60Hz

  • Other Supported Resolutions


    640 x 480 60Hz
    640 x 400 70Hz
    720 x 400 70Hz
    800 x 500 60Hz
    800 x 600 56Hz, 60Hz
    1024 x 768 60Hz
    1280 x 720 @ 58Hz, 60Hz
    1280 x 800 60Hz
    1280 x 1024 60Hz
    1366 x 768 60Hz, 60Hz RB
    1440 x 900 60Hz, 60Hz RB
    1680 x 1050 60Hz, 60Hz RB

  • Viewing Angle

    Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total

  • Number of Colors

    16.7 million

  • Brightness (typical)


    LCD Panel: 250 nits
    TouchPro PCAP: 225 nits

  • Response Time-total (typical)

    25 msec

  • Contrast Ratio

    1000:1

  • Touch Interface

    USB

  • On Screen Display


    Accessible through switches along the bottom:
    Controls: Menu, Up, Down, Select
    Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select, Power LED ON/OFF
    Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese, Russian, Korean
    Lockouts: OSD, Power

  • I/O Ports


    VGA
    HDMI
    Combo Jack
    DC jack
    USB Type B
    USB 2.0 Type A
    4x Micro USB

  • Speakers

    Two x 2W internal speakers

  • Input Video Format


    VGA (VGA DE-15 (DB-15) Male connecter cable included)
    HDMI (HDMI cable included)

  • Input Video Frequency

    Horizontal: 30 – 82KHz / Vertical: 50 – 75Hz

  • Power Consumption (Typical)


    Monitor + AC/DC adapter
    ON: 22.5W
    SLEEP: 0.8W
    OFF: 0.35W

  • Input Voltage

    12VDC +/- 5%, 100-240VAC, 50/60Hz

  • Input Connector

    Coaxial power jack (2.1 mm pin outer diameter, 6.4mm barrel inner diameter)

  • Peripheral Mounting

    4x Micro USB side ports (Top, Bottom, Left, Right)

  • Monitor Dimensions (without Stand)

    12.87″ x 20.74″ x 1.68″ / 326.9 mm x 526.9 mm x 42.7 mm

  • Monitor Dimensions (with Stand)

    15.11″ x 20.74″ x 7.61″ / 383.8 mm x 526.9 mm x 193.4 mm

  • Shipping Box Dimensions


    With Stand: 18.78″ x 24.29″ x 10.24″ / 477 mm x 617 mm x 260 mm
    Without Stand: 17.72″ x 24.92″ x 7.72″ / 450 mm x 633 mm x 196 mm

  • Weight (Unpackaged)


    With Stand: 15 lbs / 6.8 kg
    Without Stand: 11.46 lbs / 5.2 kg

  • Weight (Packaged)


    With Stand: 23.81 lbs / 10.8 kg
    Without Stand: 15.87 lbs / 7.2 kg

  • Operating Temperature

    0°C to 40°C / 32°F to 104°F

  • Storage Temperature

    -20°C to 60°C / -4°F to 140°F

  • Humidity

    Operating: 20% to 80%; Storage: 10% to 95%

  • Sealability

    Touchscreen sealed to bezel; Touchscreen sealed to LCD

  • MTBF

    50,000 hours demonstrated

  • Mounting Options

    VESA 4-hole 100mm mounting interface on rear of unit

  • Regulatory approvals and declarations


    Canada CUL, IC, China CCC, Europe CE, Korea KCC, Taiwan BSMI, United States FCC, UL, Japan VCCI, International CB, Australia RCM, Russia EAC, Mexico CoC, India BIS

  • Ingress Protection

    IPX1 – Front only

  • Power Cables


    North America Power Cable C13 – Elo P/N: E593865
    Australia Power Cable C13 – Elo P/N: E594067
    Europe Power Cable C13 – Elo P/N: E594264
    Korea Power Cable C13 – Elo P/N: E594466
    China Power Cable C13 – Elo P/N: E594670
    Taiwan Power Cable C13 – Elo P/N: E594869
    Japan Power Cable C13 – Elo P/N: E793799

  • What’s in the Box


    Touchmonitor
    Japanese language regulatory information pamphlet
    Quick Install Guide
    3x Tie wraps
    VGA cable
    HDMI cable
    Touch USB cable
    Audio cable
    Power brick
    NA Power cable
    EU Power cable
    EEI Label
    4 screws (for E126096)

  • Replacement DC Power Supply

    Power Brick 50W – E593661

  • Optional Peripherals


    Magnetic Stripe Reader (MSR) – Elo P/N: E001002
    Fingerprint Reader (FPR) – Elo P/N: E001001
    2D Barcode Scanner – Elo P/N: E926356
    PCAP Stylus Pen – Elo P/N: E066148
    Elo Monitor Handles – 1 Set – Elo P/N: E352196
    EMV Cradle for MagTek eDynamo – Elo P/N: E375343
    EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) – Elo P/N: E586981
    EMV Cradle for Ingenico RP457c (with BT and USB) – Elo P/N: E710930

  • Stands, Mounts & Kits


    Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088
    Elo Backpack® – Elo P/N: E611864
    Elo Backpack® 3.0 – Elo P/N: E901355
    Shelf Mount Bracket (75mm or 100mm VESA) – Elo P/N: E043382
    Pole Mount Bracket (75mm or 100mm VESA) – Elo P/N: E045151
    Elo Stand 1902/3-2202/3 – Black – Elo P/N: E804330
    Slim Self-Service Countertop Stand (75mm or 100mm VESA) – Elo P/N: E514693
    Slim Self-Service Floor Stand (75mm or 100mm VESA) – Elo P/N: E514881 + E515260
