Elo 2270L 27-inch LCD

Manufacturer:

Model Number: E510644

Type: 27"

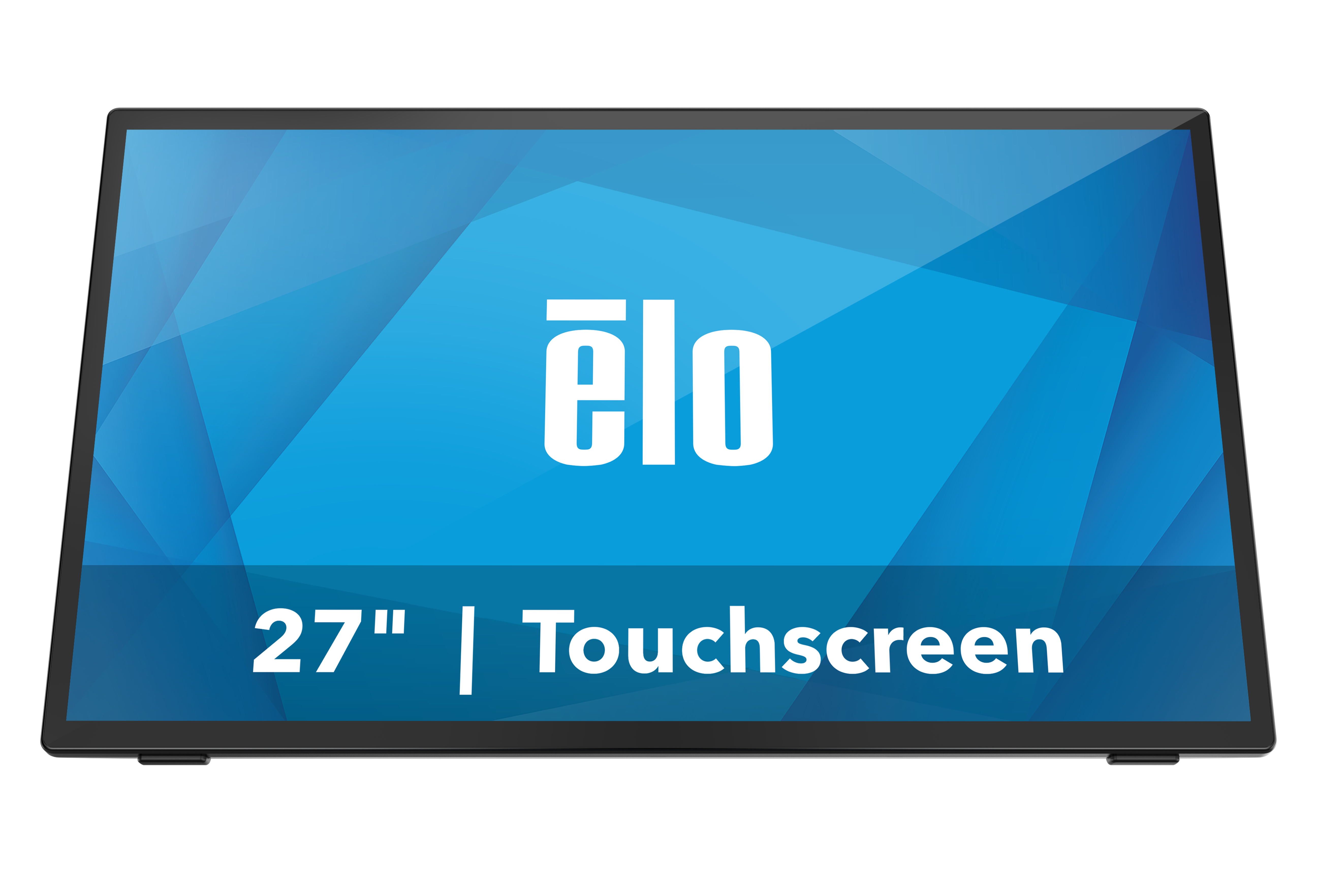

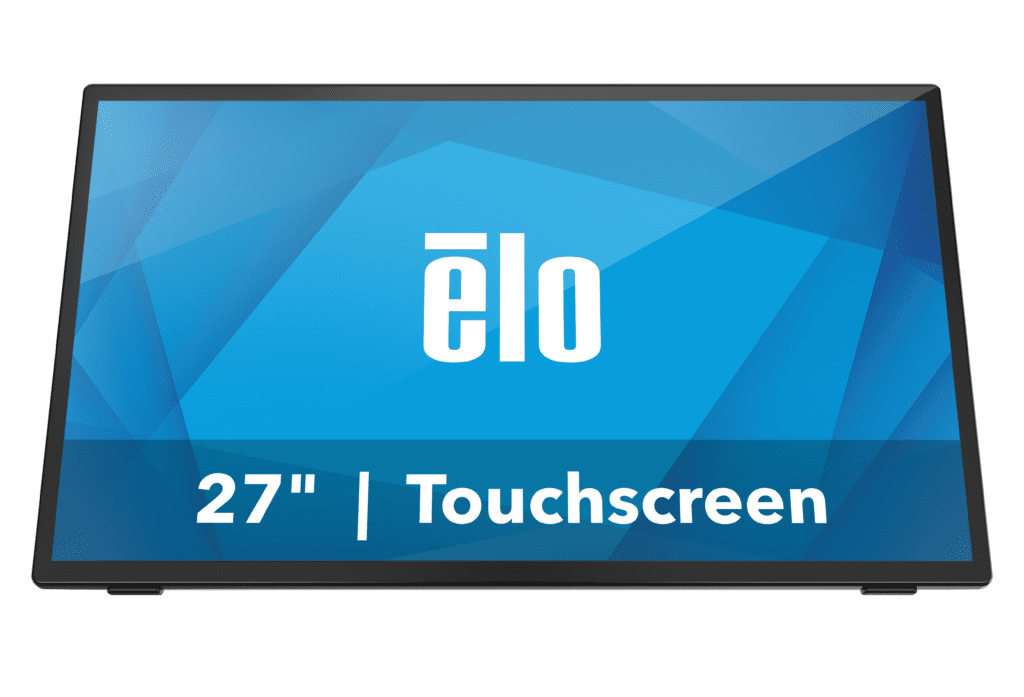

The Elo 2770L 27-inch Full HD touchscreen monitor delivers a commercial-grade interactive solution with a minimalistic design to fit any space. Backed by a three-year warranty, the compact 2770L offers a durable, energy efficient TouchPro® PCAP touchscreen with clear or anti-glare scratch-resistant glass surface options, increased viewing comfort with low blue light and flicker free features, dual built-in speakers, VGA, DP and HDMI video connectors.

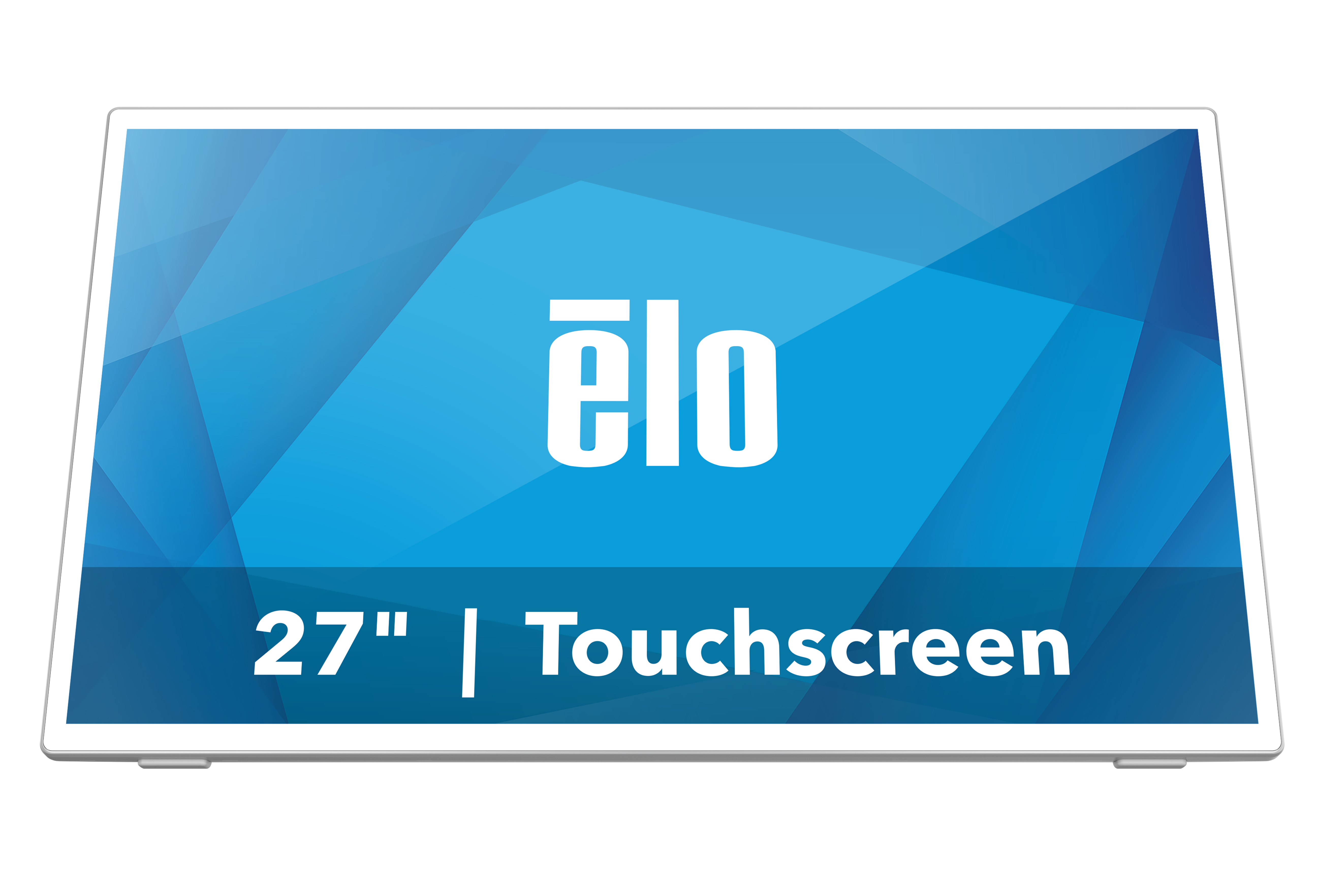

With a clean design aesthetic available in black and white and flexible mounting options, the 2770L touchscreen is well-suited for POS, interactive digital signage, self-service, document signing and more.

Spec Sheet
Request a Quote

E510644 Features

  • Narrow border touchscreen with edge-to-edge glass
  • Choose 22-, 24- or 27-inch sizes
  • Low blue light & flicker-free
  • Energy Star 8.0 Certified power efficiency
  • Commercial-grade durability
  • Flexible stand – from 20 to 70°, place the display at the angle you want or collapse for VESA mounting.
  • Durable IK07 design with scratch-resistant surface
  • Up to 70% reduction in bezel width compared to similar models

Part Number(s):

  • E510644

Accessories:

  • 4 year warranty coverage – Elo P/N: E898247
  • 5 year warranty coverage – Elo P/N: E898449
  • 3 year warranty coverage + AUR – Elo P/N: E898648
  • 4 year warranty coverage + AUR – Elo P/N: E894921
  • 5 year warranty coverage + AUR – Elo P/N: E895125

View the full extent of our products

Download our free product catalog today!

Download Now

Detailed Specifications

  • Color

    Black or White

  • Diagonal Size

    27″ / 685.8 mm

  • Active Touch Area

    23.54″ x 13.24″ / 597.888 mm x 336.312 mm

  • LCD Technology

    Active matrix TFT LCD

  • Touch Technology

    TouchPro PCAP

  • Number of Touches

    10 Touches

  • Aspect Ratio

    16:9

  • Native Resolution

    1920 x 1080

  • Preset Video Timings

    640 x 400 70Hz, 640 x 480 60Hz, 720 x 400 70Hz, 800 x 500 60Hz, 800 x 600 56, 60Hz, 1024 x 768 60Hz, 1280 x 720 @ 58Hz, 60Hz, 1280 x 800 60Hz, 1280 x 1024 60Hz, 1366 x 768 60Hz, 60Hz RB, 1440 x 900 60Hz, 60Hz RB, 1680 x 1050 60Hz, 60Hz RB, 1920 x 1080 50 60Hz

  • Number of Colors

    16.7M

  • Brightness (typical)

    Panel: 300 nits; with TouchPro PCAP: 270 nits

  • Response Time (Tr + Tf) (typical)

    14 msec

  • Viewing Angle (typical)

    Horizontal: 89°/89° or 178° total; Vertical: 89°/89° or 178° total

  • Contrast Ratio (typical)

    1000:1

  • On-Screen Display (OSD)

    Accessible through touch OSD, and press Menu button to pop up touch OSD diagram. Controls: Menu, Power. Settings: Brightness, Contrast, Video Priority, Clock, Phase, H-position, V-position, Auto-Adjust, Color Temperature, Low Blue Light, Volume, Mute, Audio Source Select, Line-in/Headphone Out, OSD Timeout, OSD Language, Aspect Ratio, Sharpness, Touch on Sleep mode ON/OFF, Power LED ON/ OFF, Recall Defaults. Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese. Lockouts: OSD, Power.

  • I/O Ports

    AC Input (IEC60320 C6), Audio in/out, VGA, HDMI, DisplayPort, USB 2.0 Type B, 2x USB 2.0 Type A

  • Video

    VGA (Female DB-15 connector), HDMI (receptacle type A), DisplayPort

  • Input Video Sync Frequency

    Horizontal: 30 – 82KHz, Vertical: 50 – 75Hz

  • Speakers

    2 x 2W internal speakers

  • Power

    AC power input connector: (IEC 60320 C6), AC input voltage range: 100-240VAC, 50/60Hz. Power Consumption (typical): ON (Default 80% Brightness): 16.5 W, ON (100% Brightness): 19 W, SLEEP: 0.5 W, OFF: 0.16 W

  • Dimensions (H x W x D)

    24.65″ x 14.68″ x 1.72″ / 626.2 mm x 372.8 mm x 43.8 mm

  • Shipping Dimensions (H x W x D)

    27.68″ x 5.35″ x 19.25″ / 703 mm x 136 mm x 489 mm

  • Weight

    13.89 lbs / 6.3 kg

  • Shipping Weight

    20.83 lbs / 9.45 kg

  • Mounting Options

    VESA 4-hole 100mm mounting interface on rear of unit. Kick stand Adjustable angle (20-70 degree)

  • Temperature

    Operating: 0° C to 40° C / 32°F to 104°F, Storage: -20° C to 60° C / -4°F to 140°F

  • Humidity (non-condensing)

    Operating: 20% – 80%, Storage: 10% – 95% (38.7° maximum wet bulb temperature)

  • Regulatory Approvals and Declarations

    Argentina AR certificate; Canada CUL, IC; China CCC; Europe CE; Korea KCC; Taiwan BSMI; United States FCC, UL; Japan VCCI, PSE; International CB; Australia RCM; Russia EAC; Mexico CoC; RoHS, China RoHS, WEEE, REACH; United Kingdom UKCA

  • Impact Protection

    IK07

  • Other Features

    Energy Star 8
