Enclosure Color
Black/Silver
-
Compatibility
Display Compatibility (Portrait and Landscape):
– 15” I-Series Android/Windows
– 22” I-Series Android/Windows
– 1502L Touchscreen Monitor*
– 2002L Touchscreen Monitor*
– 2202L Touchscreen Monitor*
– 2402L Touchscreen Monitor*
– 2702L Touchscreen Monitor* (portrait limited to Floor Stand only)
*requires center plate (E698263) for portrait mounting
-
Optional Accessories
– EMV Cradle for MagTek eDynamo – Elo P/N: E375343
– EMV Cradle for Verifone E355 – Elo P/N: E201088
– EMV Cradle for Ingenico ICMP – Elo P/N: E200465
– EMV Cradle for Ingenico RP457C with BT and USB – Elo P/N: E710930
– EMV Cradle for Ingenico RP457C with Audio Jack, BT and USB – Elo P/N: E586981
– MSR – Elo P/N: E001002
– Barcode Reader – Elo P/N: E093433
– 2D Barcode Reader – Elo P/N: E926356
– NFC – Elo P/N: E001004
– Fingerprint Reader – Elo P/N: E001001
– Webcam – Elo P/N: E275233
– Status Light Kit for Standard Model I-Series 2.0 for Android – Elo P/N: E466847
– Status Light Kit for Value Model I-Series 2.0 for Android – Elo P/N: E651272
– Center Plate for 02-Series Monitors (required for portrait mounting) – Elo P/N: E698263
-
Dimensions

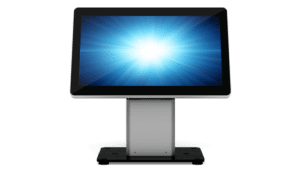

Countertop Stand: 10.23″ x 8.86″ x 12.08″ / 260 mm x 225 mm x 306.86 mm
Floor Stand: 21.69″ x 13.78″ x 46.2″ / 551 mm x 350 mm x 1173.48 mm
(No display installed)
-
Shipping Box Dimensions
Countertop Stand: 16.54″ x 11.81″ x 9.45″ / 420 mm x 300 mm x 240 mm
Floor Top: 50″ x 11.81″ x 11.02″ / 1270 mm x 300 mm x 280 mm
Floor Base: 28.35″ x 18.5″ x 4.72″ / 720 mm x 470 mm x 120 mm
(No display installed)
-
Weight (Unpackaged)
Countertop Stand: 16.22 lbs / 8.02 kg
Floor Top: 33.51 lbs / 15.2 kg
Floor Base: 26.79 lbs / 12.15 kg
-
Weight (Packaged)
Countertop Stand: 17.68 lbs / 7.36 kg
Floor Top: 39.68 lbs / 18 kg
Floor Base: 30.31 lbs / 13.75 kg
-
Operating Temperature
0°C to 40°C / 32°F to 104°F
-
Storage Temperature
-20°C to 60°C / -4°F to 140°F
-
Humidity
Operating: 20% to 80%
Storage: 10% to 90%
-
Availability
US, Canada, EMEA, Japan, China
-
ADA Compliant
Yes – software and installation must follow ADA rules
-
What’s in the Box
Countertop Stand:
– QIG
– Small black tie-wrap, x3
– Hook and Loop Cable Tie with Buckle, x1
– Screws for Countertop Stand (refer to MS drawing for details)
Floor Stand:
– QIG
– Small black tie-wrap, x3
– Hook and Loop Cable Tie with Buckle, x1
– Screws for Floor Stand (refer to MS drawing for details)
