TSP143IV SK Linerless Label Printer

Manufacturer:

Model Number: TSP143IVUW SK GRY US

Type: 40mm

Introducing the TSP143IV SK from Star Micronics: the pinnacle of thermal linerless sticky label printing in a sleek, compact form. As the market’s smallest desktop label printer, it seamlessly blends advanced features like Android Open Accessory (AOA), dual-band wireless connectivity, and CloudPRNT with eco-friendly linerless labels. Ideal for a variety of applications, from food and beverage service (QSR) to delivery, this printer enhances efficiency with its repositionable labels that adhere to any surface without residue. The TSP143IV SK is not only a step forward in printing technology but also a nod to environmental responsibility, making it a perfect fit for modern, conscious businesses.

Spec Sheet
Request a Quote

TSP143IVUW SK GRY US Features

Key Features

  • Smallest desktop label printer on the market
  • Prints repositionable, linerless sticky labels
  • Linerless yields 60% more labels per roll than die-cut
  • 80mm, 58mm, and 40mm paper width support
  • Compact and ultra-modern design
  • AOA, USB/LAN, Wi-Fi (WLAN), CloudPRNT connectivity
  • Cloud Ready for Star Micronics Cloud Services
  • Create customized labels with Label Builder
  • 180mm/s high-speed printing
  • 2-year warranty included with options to EXTEND-A-STAR® or SWAP-A-STAR®

Part Number(s):

  • 37951540

Accessories:

  • 30729190
  • 30907200
  • 39594012
  • 39594002
  • 37954780

View the full extent of our products

Download our free product catalog today!

Download Now

Detailed Specifications

  • Printer Method

    Direct Line Thermal

  • Print Speed

    Up to 180 mm/sec

  • Printer Case Color

    Black (Gray)

  • Models Available

    Auto-Cutter

  • Print Resolution

    203 dpi (8 dots per mm)

  • No. of Columns

    Star Mode = 48

  • Font Size

    12 x 24

  • Character Set

    ANK 95, 32 Int 128 Graphic plus Chinese, Japanese, Korean, Taiwanese

  • International Code Pages

    Star Mode=48

  • Bar Codes

    Extended barcode functionality – 9 versions / PDF 417, Maxicode Option

  • Line Spacing

    3 mm or 4 mm or programmable

  • Paper Width

    80 mm standard, 58 mm and 40 mm with paper guides

  • Paper Thickness

    86 um (0.086 mm)

  • Paper Roll Diameter

    Up to 83 mm

  • Paper Loading

    “Drop-In & Print”

  • Paper-Out Sensor

    Yes

  • Maximum Print Width

    80mm paper = 72 mm, 58 mm paper = 50.8mm

  • Top Margin

    5 mm default, changeable to 11 mm

  • Auto-Cutter

    Guillotine (Partial Cut Only)

  • Sensors

    Taken, Paper End, Cover Open

  • Logo Store Capacity

    512 KB Internal Printer Memory

  • Journal Capability

    Available through Starmicronicscloud.com

  • Drivers Available

    Windows 10, Windows 8.1, Windows® XP 32 Bit, Vista 32/64 Bit, Windows 7 32/64 Bit, Server 2008 32/64 Bit, XP Embedded, POSReady2009, OPOS™, JavaPOS™ (Windows/Mac/Linux), USB Vendor Class, CUPS Driver (Mac/Linux), Mac, Mac OS X, Linux™, StarPRNT SDK (iOS/Android/Windows Desktop/UWP), StarXpand SDK (React Native), Star WebPRNT Browser (Android), Star PassPRNT (iOS/Android/UWP)

  • Digitally Signed (WHQL)

    Yes

  • Connectivity

    TSP143IVUE SK: AOA (Android Open Accessory support), USB/LAN Dual Interface (USB-C and USB-A), CloudPRNT, TSP143IVUW SK: WLAN, USB-C, Ethernet (LAN), CloudPRNT

  • Emulation Modes

    Star Graphics Mode/StarPRNT

  • Peripheral Drive Circuit

    2 circuits, (24V max. 1A), 1 compulsion input

  • Power Consumption

    Average 1.6 Amp. Printing, 0.1 Amp. Standby [Approx. 43W while printing; up to 53 W with a 1.5 A device connected. Approx 3.5 W in Standby; up to 13 W with a 1.5A device connected]

  • Operating Temperature

    5°C to 45°C

  • Operating Humidity

    10% – 90% RH (without condensation)

  • Storage Temperature

    -20°C to 60°C

  • Storage Humidity

    10% – 90% RH

  • Dimensions

    140 X 123 X 169 (w x h x d) mm

  • Weight

    1.3 kg

  • Safety and Regulatory Standards

    UL, C-UL, TuV, FCC, VCCI, EN55022, CE

  • Reliability MCBF

    11.25 Million Lines

  • Print Head

    75 km

  • Auto-Cutter Reliability

    800,000 cuts

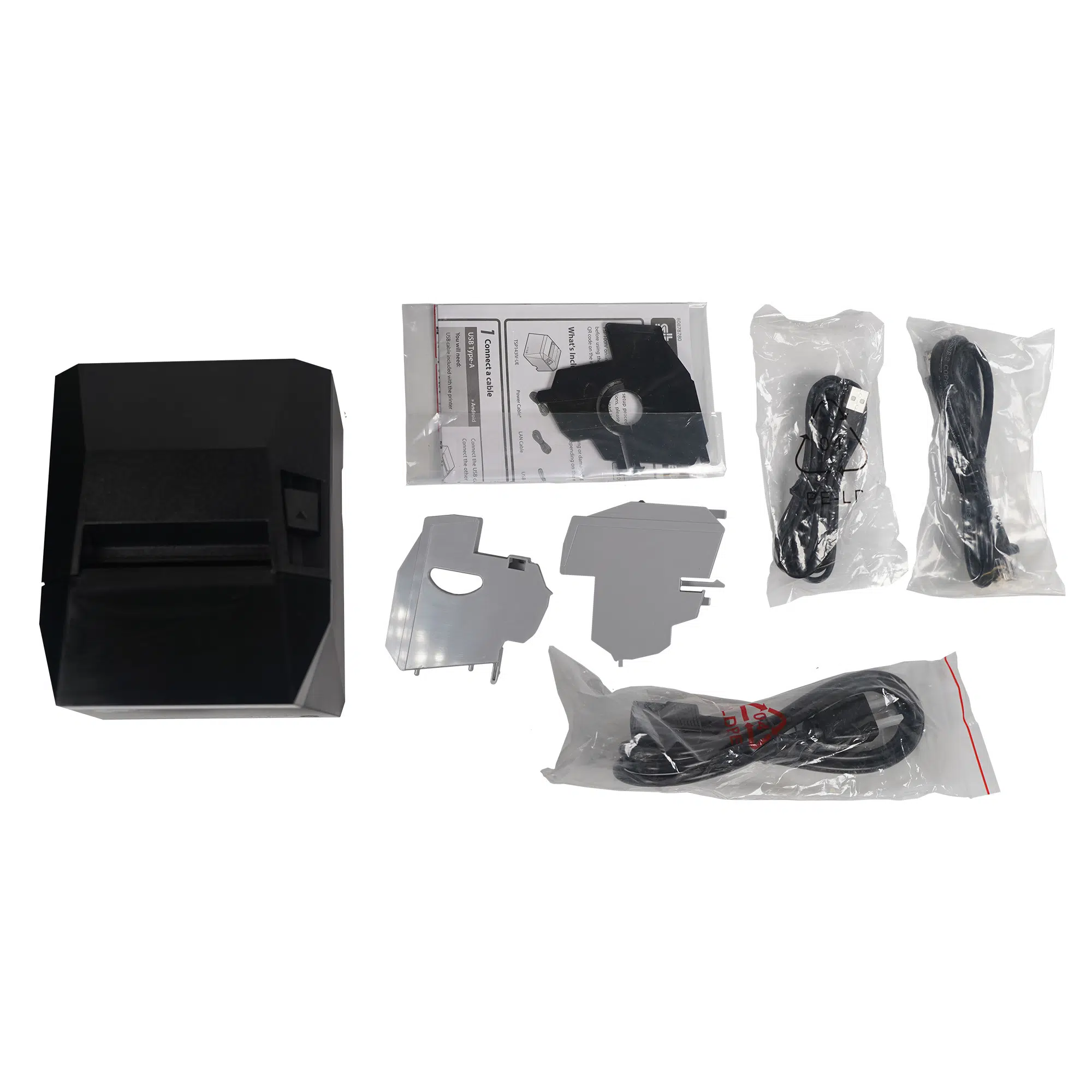

  • What’s in the Box

    Power Cable, AC Adaptor, LAN Cable, USB Cable (C to A), Paper Roll Guide (58 mm), Paper Roll Guide A/B (40 mm), Rubber Feet x 2, Safety Instructions, Easy Setup Guide

  • Warranty-Protected

    The TSP143IV SK comes with a 2-year standard warranty with the options to EXTEND-A-STAR® and/or SWAP-A-STAR®
